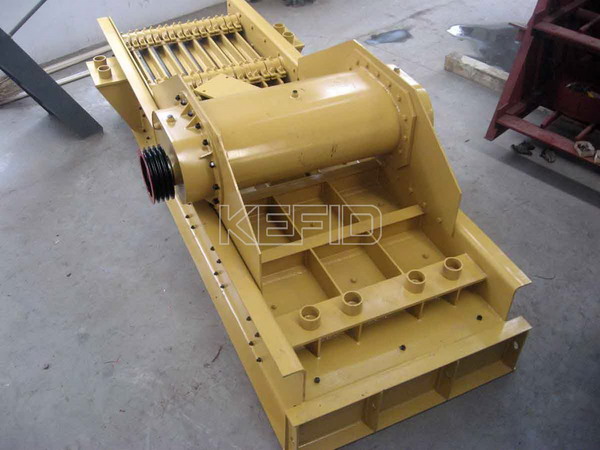

We can supply wide ranging vibrating feeders, capacities ranging from120 tonne/hr to 600 tonne/hr. Vibrating feeder is used for transferring bulk materials from hoppers or driers, grinders, crushers, millers or screens in chemical, mining, foundry, quarrying and iron and steel industries.

Features of Vibratory Feeder:
Smooth vibration, reliable operation, long service life, low noise, low power consumption, easy to adjust, simple structure, easy to install, light weight, small volume, simple maintenance.

Technical Parameter Of Vibrating Feeder :Mm to inch conversion: 25.4millimeters=1 inch

Model	Feed chute size (mm)	Max. feeding size (mm)	Handling capacity (t/h)	Power (kW)	Overall dimension (mm)	Weight (including motor) (kgs)
GZD-960×3800	960×3800	500	120-210	11	3880×2240×1880	3980
GZD-1100×4200	1100×4200	580	200-430	15	4300×2450×2010	4170
GZD-1100×4900	1100×4900	580	280-500	15	4980×2450×2030	4520
GZD-1300×4900	1300×4900	650	450-600	22	4980×2705×2050	5200

Note: Any change of Vibrating Feeder technical data shall not be advised additionally.
