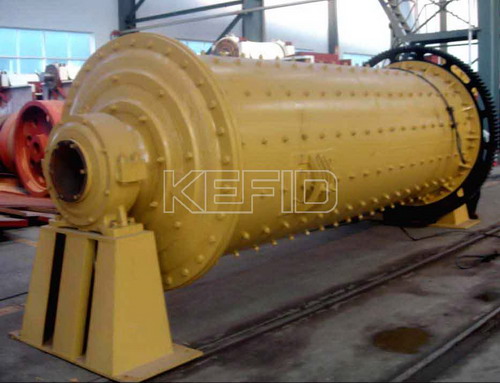

Ball Mills are primarily used for fine grinding. Ball Mill is a key equipment which repulverises the material after it is crushed. Ball Mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Our company has been amongst the pioneers for many years in the design and application of milling systems for the size reduction of a wide variety of materials including minerals, ores, and coal. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.

Technical Parameter Of Ball Mill :Mm to inch conversion: 25.4millimeters=1 inch
Mm to mesh conversion: 25.4mm=1in.
The humidity and hardness of raw materail will affect the fineness and capacity.

Model	Speed of bucket (r/min)	Weight of ball (t)	Size of feed opening (mm)	size of outputting feed (mm)	Production (t/h)	Power (kW)	Weight (t)
Ф900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Ф900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
Ф1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
Ф1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
Ф1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
Ф1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
Ф1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
Ф1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
Ф1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
Ф1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
Ф1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
Ф2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
Ф2200×6500	21	30	≤25	0.075-0.4	14-26	280	52.8
Ф2200×7500	21	33	≤25	0.075-0.4	16-29	380	56
Φ2200×9500	21	38	≤25	0.074-0.4	18-35	475	62

Note: Any change of Ball Mill technical data shall not be advised additionally.
