Our company specializes in producing medium and large raymond mill, with 22 years manufacturing experience in powder milling filed, we have been a leading grinding mill manufacturer and suppier in China.

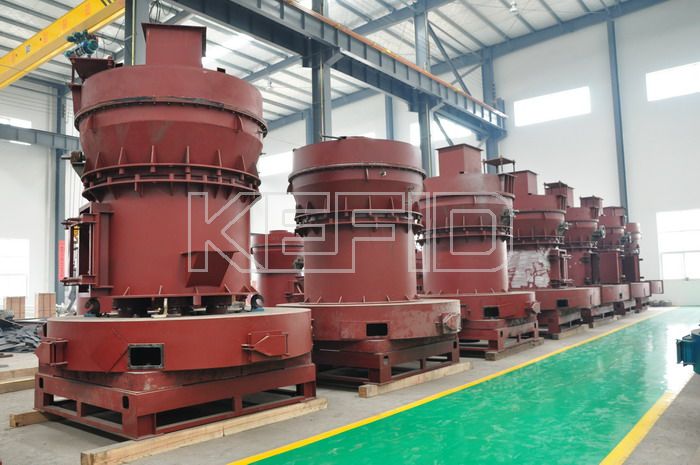

R series Raymond mill is optimized by our experts, combines low comsumption, low investment, environment friendly, small occupation area, it more efficiency than the traditional raymond mill.

Technical Parameter Of Raymond Mill :Mm to inch conversion: 25.4millimeters=1 inch
Mm to mesh conversion: 25.4mm=1in.
The humidity and hardness of raw materail will affect the fineness and capacity.

Model			3R2115	3R2615	3R2715	3R3016	4R3216
Roller	Number		3	3	3	3	4
	Diameter (mm)		210	260	270	300	320
	Height (mm)		150	150	150	160	160
Ring	Inside diameter (mm)		630	780	830	880	970
	Height (mm)		150	150	150	160	160
Maximum feed size (mm)			15	15-20	15-20	15-20	20-25
Output size (mm)			0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165	0.044-0.165
Power of main frame (kW)			15	18.5	22	30	37
Fineness of final product (mm)	0.165	capacity (t/h)	1.2-1.8	1.8-2.5	2.3-2.8	2.6-3.2	3.2-4.5
	0.075		0.6-1.2	1.2-1.8	1.8-2.3	1.9-2.6	2.4-3.1
	0.044		0.6-1.0	0.8-1.2	0.9-1.7	1-1.9	1.8-2.5

Note: We hold the ringts to modify the design and specification of our products, any modification shall not be advised additionally.
