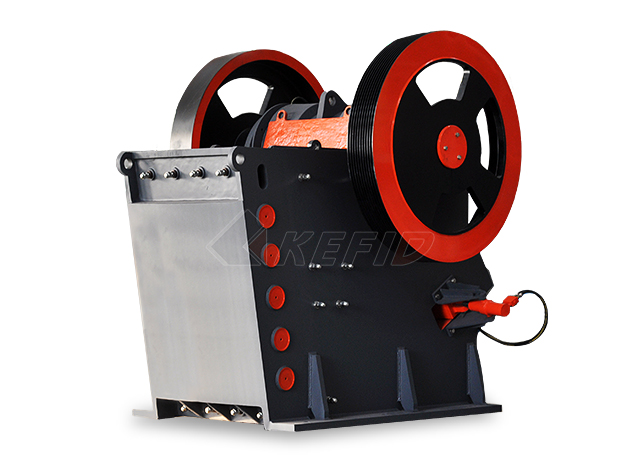

JC Jaw Crusher
The JC series jaw crusher manufactured by our company has already been regarded as the most popular jaw crusher in the world. Depending on the latest crushing technology and manufacturing level, it is most auitable for the materials with crushing high hardness and high abbrasivness.
-

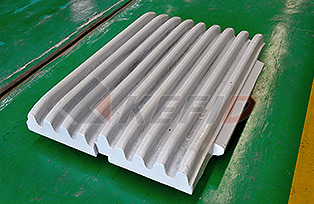

FIXED JAW PLATES
Material : ZG65Mn
Function : Extruding material combined with movable plates.
-
MOVABLE JAW PLATE
Material : ZG65Mn
Function : Extruding material combined with movable plates.
-

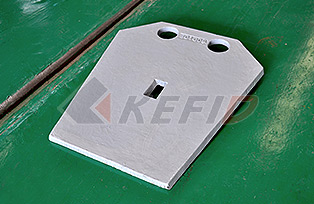

UPPER, BOTTOM SIDE LINING PLATE
Material : high manganese steel
Function : The jaw crusher side lining plate is also called side guard plate, it consist of upper and bottom plate, it uses as to offer protection of the frame while the jaw crusher is working.
-

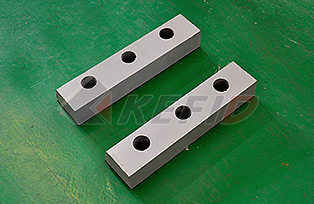

LEFT , RIGHT WEDGE BLOCK
Material : cast steel 35
Function : The wedge block is installed at the gap of the both sides of the crusher, it is used to adjust the discharge opening of the crusher, by pushing them closer, the toggle seat pushes to the toggle plate so the discharge opening gets smaller, if reverse, the discharge opening goes bigger.
FIXED JAW PLATES:
Changing process:
1. Lossen the fasteners(screws).
2. Disassemable side plate and press blocks.
3. Suspend the damaged plates out and Suspending the new one in the same position.
4. Assemmable pression blocks and side plate and fasten it(screws).
5. Adjusting the outlet range.
MOVABLE JAW PLATE
Changing process:
1. Lossen the fasteners(screws).
2. Disassemable side plate and press blocks.
3. Suspend the damaged plates out and Suspending the new one in the same position.
4. Assemmable pression blocks and side plate and fasten it(screws).
5. Adjusting the outlet range.
TOGGLE
Changing process:
1. Stop the machine and clean the material, check the damage parts.
2. Fixing movable plants and make it approching to fixed plate, and changing the damaged parts.
3. Adjusting movable plates to working status
SPRING
Changing process:
1. Stop the machine and clean the material, check the damage parts.
2. Fixing movable plants and make it approching to fixed plate, and changing the damaged parts.
3. Adjusting movable plates to working status.
