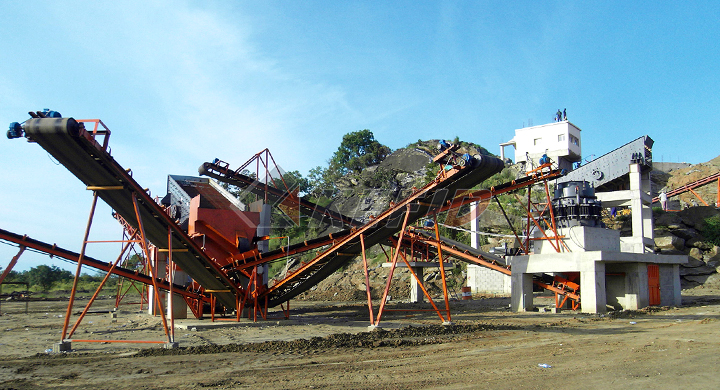

200-250tph granite crushing line in South Sudan
![200-250tph granite crushing line in South Sudan](/v3/uploads/20150130/af_south_sudan_s.jpg)
Material : granite
Output size : 0-5mm-12 mm–24mm-36mm
Feeding size : 600mm
Capacity : approximate 200-250tph
Configuration
vibrating feeder ZSW1300x4900, primary jaw crusher PE900x1200, secondary cone crusher standard CSB160, tertiary short head cone crusher CSD160.
The raw granites are collected into the hopper from the loader or truck, then the granites are fed into the jaw crusher PE900x1200 by the vibrating feeder ZSW1300x4900 for primary crushing. Then the outputs are transported to the first vibrating screen 3YZS2160 for primary screening. The bigger size outputs about 150mm are transported to the standard type cone crusher CSB160, the smaller size below 70mm are transported to the short head cone crusher CSD160. Then after crushed by the two cone crushers, the outputs are transported to the second vibrating screen 4YZS2460 for screening, the size 0-5mm-12 mm–24mm-36mm will be screened out as final products, the size bigger than 36mm will be transported back to short head cone crusher for re-crushing. Then outputs will be transported to the 4YZS2460 for screening out the final products. It is the circle crushing line, the granite will be crushed again and again until all the output size below 36mm.
